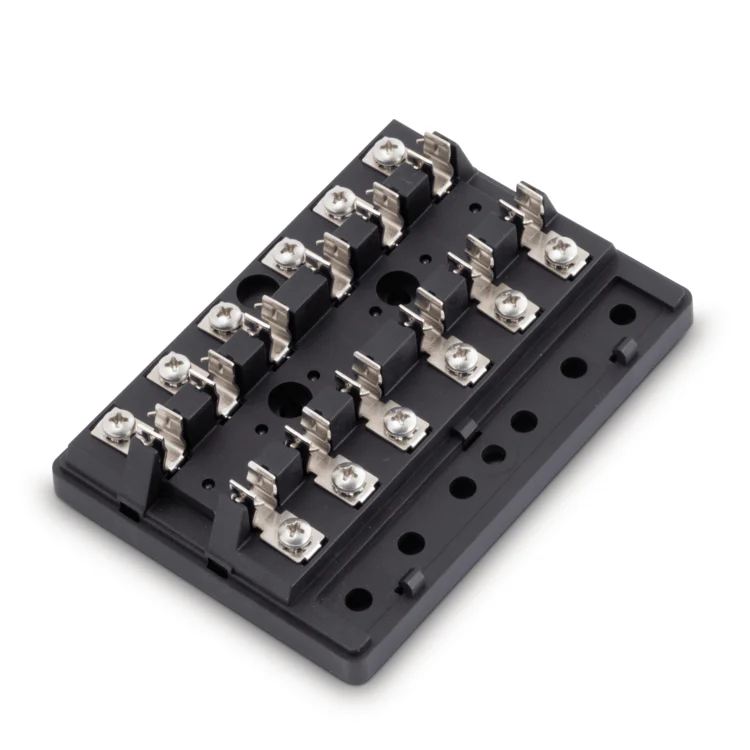

409 Series Fuse Block | FS40920
6 gang AGC independent source with cover. Accepts fast-acting (AGC), time-delay (MDL), and 3AG glass fuses. LED indication of blown fuses. PBT, glass fiber reinforced base material. Transparent cover with recessed area for labels & storage for 6 spare fuses (60pc. label set included).
- Accepts Fast-acting (AGC), Time-delay (MDL) and 3AG Glass fuses
- Dimensions:Ā 129mm x 91mm
- Max Operating Voltage:Ā 32VDC
- Rating per Circuit:Ā 30A
- Cumulative Rating per block:Ā 100A
- Screw Size:Ā M4
- Terminal Stud Size:Ā M5
- 60pc. label set included
